Injection Molding Material Selection Guide
Engineering Plastics for High-Performance Applications
At Yangzhou Dingyue, we help global clients select the most suitable engineering plastics based on performance, cost, and manufacturability.Choosing the right material is critical to the success of your plastic parts.
Our Material Expertise
We work with a wide range of engineering plastics for injection molding:
- PC (Polycarbonate)
- PA (Polyamide)
- POM (Acetal)
- ABS(Acrylonitrile Butadiene Styrene)
- PEEK(Polyether Ether Ketone)
- PPS(Polyphenylene Sulfide)
Our team evaluates mechanical strength, heat resistance, chemical exposure, and cost to recommend the best material for your application.
Key Injection Molding Materials
PC (Polycarbonate)
Best for: high impact + transparency
- Excellent impact resistance
- High heat resistance
- Optical clarity
Applications: automotive lighting, medical devices, electronic housings
PA (Polyamide)
Best for: strength + wear resistance
- High mechanical strength
- Good chemical resistance
- Excellent durability
Applications: gears, automotive parts, industrial components
POM (Acetal)
Best for: precision + low friction
- High dimensional stability
- Low friction
- High stiffness
Applications: precision parts, bearings, connectors
ABS(Acrylonitrile Butadiene Styrene)
Best for: cost-effective products
- Good impact resistance
- Easy to process
- Excellent surface finish
Applications: consumer products, housings
PEEK (Polyether Ether Ketone)
Best for: extreme environments & high performance
- Exceptional heat resistance (up to ~250°C continuous use)
- Excellent mechanical strength and stiffness
- Outstanding chemical resistance
- High wear and fatigue resistance
Applications: aerospace, medical implants, high-end automotive components
PPS (Polyphenylene Sulfide)
Best for: high temperature + chemical resistance
- High thermal stability
- Excellent chemical resistance
- Low moisture absorption
- Good dimensional stability
Applications: automotive parts, electrical components, industrial systems

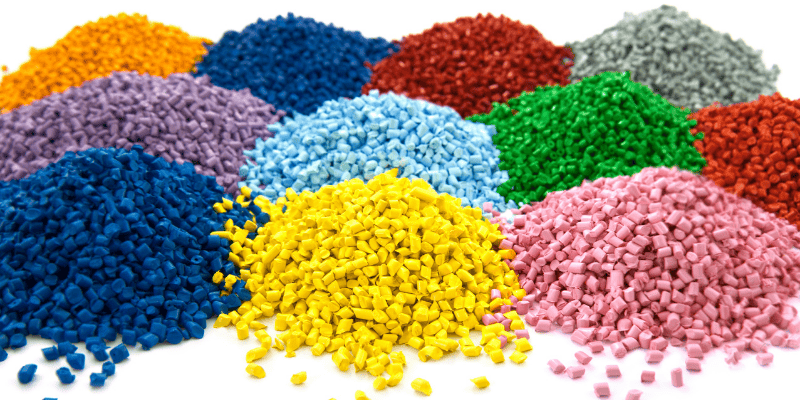

Our raw materials are stored in a controlled environment with clear labeling and batch management to ensure traceability and consistent quality throughout production.
Material Comparison Table
| Material | Best For | Strength | Heat Resistance | Cost | Typical Applications |
|---|---|---|---|---|---|
| PC | Transparency & strength | High | High | $$–$$$ | Automotive, medical |
| PA | Mechanical strength | Very High | Medium-High | $$ | Gears, auto parts |
| POM | Precision parts | High | Medium | $$ | Bearings, connectors |
| ABS | Cost-sensitive products | Medium | Low-Medium | $ | Consumer products |
| PPS | High temp & chemical | High | Very High | $$$ | Automotive, electrical |
| PEEK | Extreme performance | Very High | Extremely High | $$$$ | Aerospace, medical |
For applications requiring balanced performance between strength, cost, and processability, our engineering team can recommend optimized material solutions based on your specific requirements.
How to Choose the Right Material
We follow a structured material selection process:
1. Application Analysis
Load, environment, temperature, chemical exposure
2. Performance Requirements
Strength, flexibility, durability, appearance
3. Material Recommendation
Based on engineering and production feasibility
4. Cost Optimization
Balance between performance and budget
5. Prototype Validation
Testing before mass production
This ensures your product performs reliably while staying cost-efficient.
Material Selection for Different Industries
We provide tailored material solutions:
- Automotive → PA, reinforced plastics, PC
- Electronics → ABS, PC, POM
- Medical → PC, POM, specialty materials
- Consumer products → ABS, PC/ABS
Industry experience helps us reduce trial-and-error.
Why Material Selection Matters
Choosing the right material helps:
- Improve product lifespan
- Reduce defect rates
- Optimize manufacturing efficiency
Choosing the wrong material lead to:
- Product failure
- Warpage or deformation
- Increased production cost
- Delays in project timeline
Integrated with Engineering & Manufacturing
Material selection is closely linked to:
- DFM (Design for Manufacturing)
- Mold design and cooling system
- Injection molding parameters
Our engineering team ensures material choice works seamlessly with tooling and production.
Why Choose Our Material Expertise
- 18+ years injection molding experience
- Strong engineering-driven material evaluation
- Experience with global OEM projects
- Support from design to production
- Focus on performance + cost optimization
We don't just mold parts - we help you make the right engineering decisions.
Not Sure Which Material Fits Your Project?
Our engineering team will help you select the best material based on your design, application, and budget.
